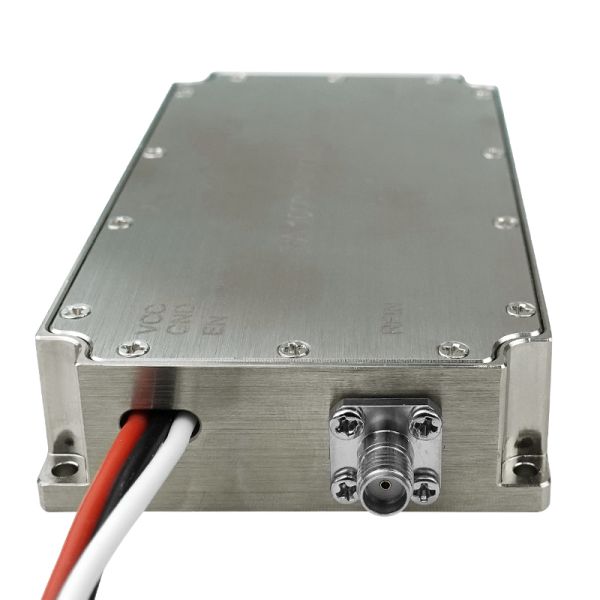

High efficient 10W 20W Coverage 500-7300mhz PA amplifier module for anti drone jammer system
product Introduction
The TEXINPA020 is Shen Zhen Texin Electronics Co.,ltd new designed result of PA power amplifier module .The 10W 20W PA power amplifier high light is the band cover 500-7300mhz in one amplifier ,compare with regular the amplifier much convenient to carry.It defense the 800mhz 900mhz 1200mhz 2400mhz 5200mhz 5800mhz image transmit fpv drone highly effective .But if you need different frequency or different wattage welcome to contact us .
*Frequency:500-7300mhz
*Power :10W 20W
*Voltage :28V
*Current:1.5A
Specification
| No. | Item | Data | Unit |
| 1 | Frequency | 500-7300 | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 1.5 | A |
| 4 | Output | 20 | W |
| 5 | Gain | 43 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | SMA / Female |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) |
| 9 | Power supply wire | Red+Black |
| 10 | Enable Control | High ON Low Off |
| 11 | Out shell Size | 105*60*20 | mm |
| 12 | Mount hole | 105*60 | mm |
| 13 | Weight | 300 | g |
| 14 | Work Temperature | -40~+125 | ℃ |
| 15 | Out shell material | Aluminum |
| 16 | Vibration need | Car load ok |
| 17 | Input | 0-10dbm |
Features
Attention
- Use it before need test
- when you connect power supply must related antenna
- when you installed seperate close band module
- when the out put power over high must matching cooling device
FAQ
Are you a anti drone module and jammer manufacturer?
Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.
What is the customized frequency range and output power of the anti drone jammer module?
TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.
Can you show us the test photo and video of the FPV jammer module after we buy them?

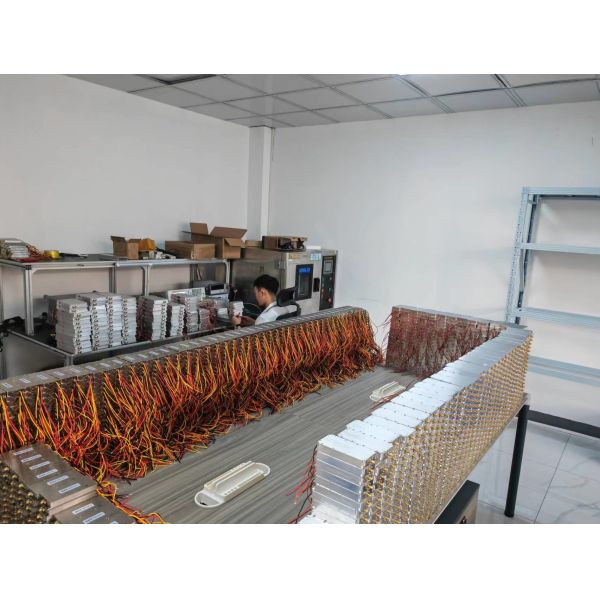

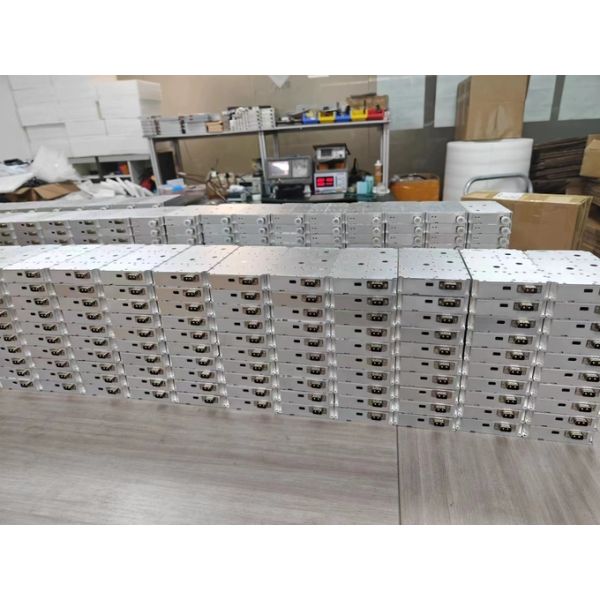

yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
